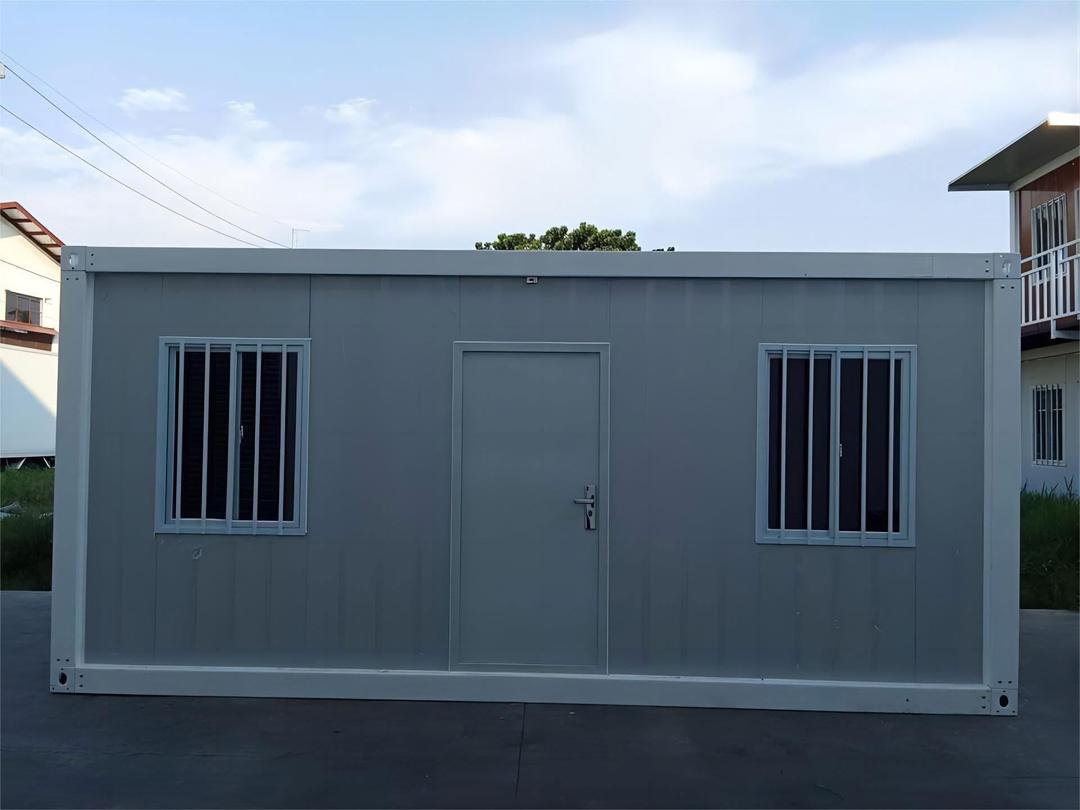

Folding Container Homes (Set of 10 units)

This modern prefabricated container house is designed for quick installation, durability, and versatile use. Built with a strong steel frame and high-quality insulated wall panels, it offers a comfortable and secure living or working space.

Key Features:

Fully assembled structure – ready to use after placement

Sturdy steel frame for long-lasting durability

High-grade insulated walls for heat and sound protection

Two sliding windows with safety grills for ventilation and security

Lockable main door for added safety

Weather-resistant exterior suitable for all climates

Ideal For:

Worker accommodation

Site offices

Farmhouses

Temporary living units

External Dimensions -- 5800mm(length)*2500mm(width)*2450mm(height)

Internal Dimension -- 5650mm(length)*2350mm(width)*2230mm(high)

Weight : 1.3 tons

                                                       STEEL FRAME

TOP GIRDER :  SPEACIAL SHAPE STEEL GALVANIZED CONCAVE CONVEX PIPE 63MM*80MM*1.5MM ( BOTH SIDE )

BOTTOM GIRDER :SPEACIAL SHAPE STEEL GALVANIZED CONCAVE CONVEX PIPE 63MM*80MM*1.5MM ( BOTH SIDE )

TOP BEAM :  GALVANIZED SQUARE PIPE 50MM*50MM*1.8MM

FRONT AND REAR END GIRDER :  SPEACIAL SHAPE STEEL GALVANIZED CONCAVE CONVEX PIPE 63MM*80MM*1.5MM ( BOTH SIDE )

SIDEWALL FRAME ,OWN PATENT WALL FRAME STRUCTURE, OUR FOLDING HOUSE IS NO LEAKING : SPEACIAL SHAPE STEEL GALVANIZED CONCAVE CONVEX PIPE 63MM*80MM*1.5MM ( BOTH SIDE )

BOTTOM CROSSBEAM :  GALVANIZED SQUARE STEEL PIPE 40MM*80MM*2.0MM

CAST STEEL BUT JOINT CORNER FITTING : STEEL PLATE ( 210MM*100MM*15MM)

FOLDING HINGE : GALVANIZED HINGE 85MM*115MM*3MM (SHAFT COLUMN 304 STAINLESS STEEL)

INTEGRAL FRAME PROTECTIVE COATING : CARBARET HIGH GLOSS ENAMEL

                                                ROOF

EXTERNAL ROOF : 104 COLOR STEEL TILE (0.5MM)

INTERNAL CEILING : 831 CEILING TILE (0.326MM)

INSULATION ROCK WOOL : BULK DENSITY 60KG/M^3*14.5 SQUARE

                                              FLOOR

GRADE A FIREPROOF GLASS MAGNESIUM PLATE MGO BOARD : 15 MM
